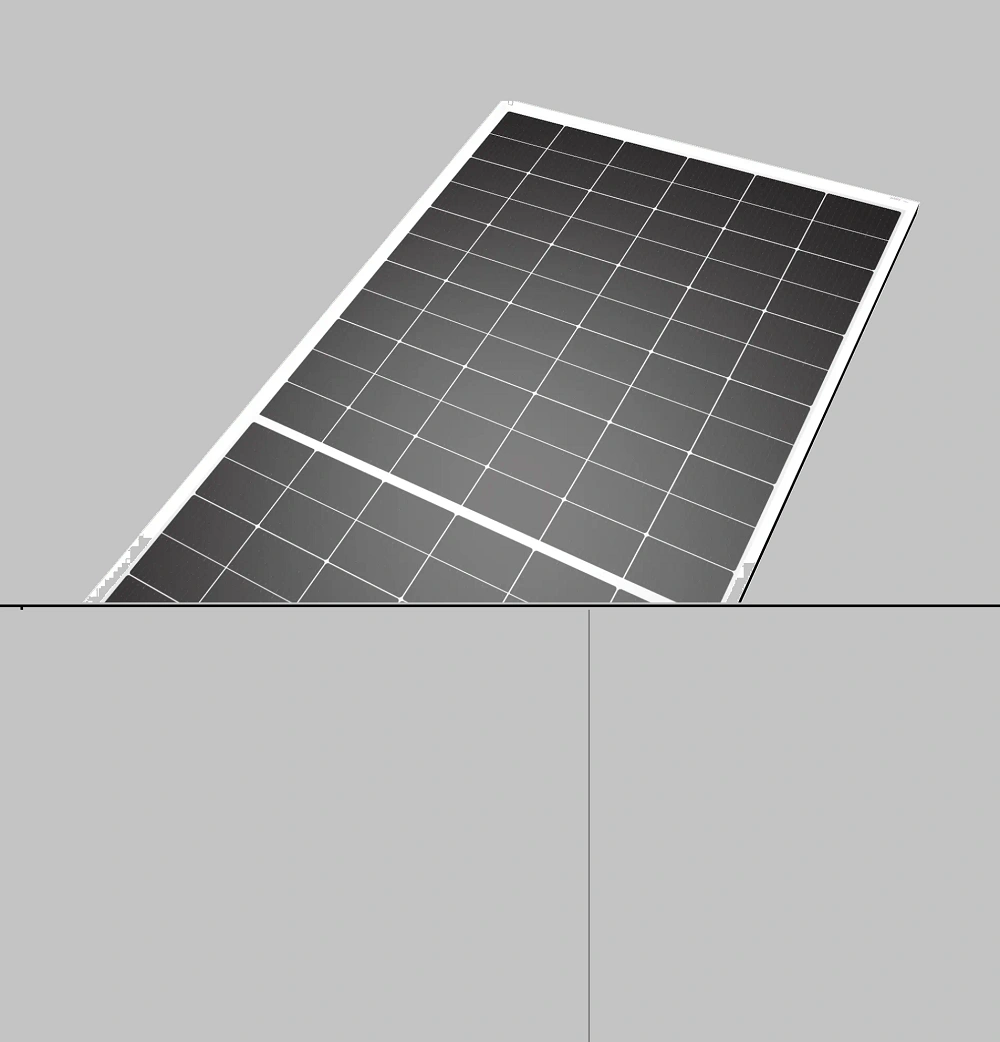

Adani Solar 630W - 650W ELAN PRIDE Series Bifacial 132 Half-Cells Efficiency 20.87%

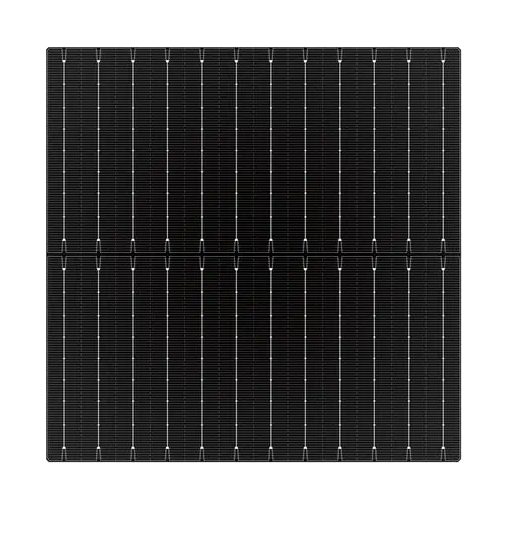

The ELAN PRIDE series utilizes advanced bifacial technology to deliver higher generation compared to standard monofacial modules. Cell Technology: Powered by 132 half-cut mono-crystalline P-type PERC bifacial solar cells utilizing Multi Busbar (MBB) technology. Module Efficiency: Features a peak module efficiency of up to 20.87% under standard testing conditions. Bifaciality Advantage: Features a $70\pm5\%$ bifaciality factor, allowing for energy capture from both sides of the panel. Enhanced Performance: Optimized for power outputs up to 730 Wp at 15% bifaciality gain, depending on ground reflectance. Material Quality: Built with Ga-doped technology to ensure the least degradation from LID (Light Induced Degradation) and LeTID. Advanced Superstrate: Features a 3.2 mm high-transmittance ARC (Anti-Reflective Coating) glass superstrate with a transparent backsheet substrate. BenefitsLower LCOE: MBB technology provides a more balanced interior stress and a grid pattern current path, leading to lower overall costs. Shadow Tolerance: The half-cut design improves shade tolerance and reduces internal resistance for higher power output. Environmental Durability: Highly resistant to salt mist and ammonia, making it suitable for challenging environmental conditions. Reliable ROI: Includes a 30-year linear power warranty with a degradation rate of less than 0.55% per year from years 2 to 30. Premium Safety: Rated as Application Class A (Safety Class II) and equipped with an IP68 rated junction box. Mechanical Strength: Tested to withstand high mechanical loads of 5400 Pa on the front and 2400 Pa on the back.
Specifications
- MOQ
- 160 pcs
- Sector
- Renewable Energy
- Certifications
- IEC 61215IEC 61730BISMCSISO 9001
