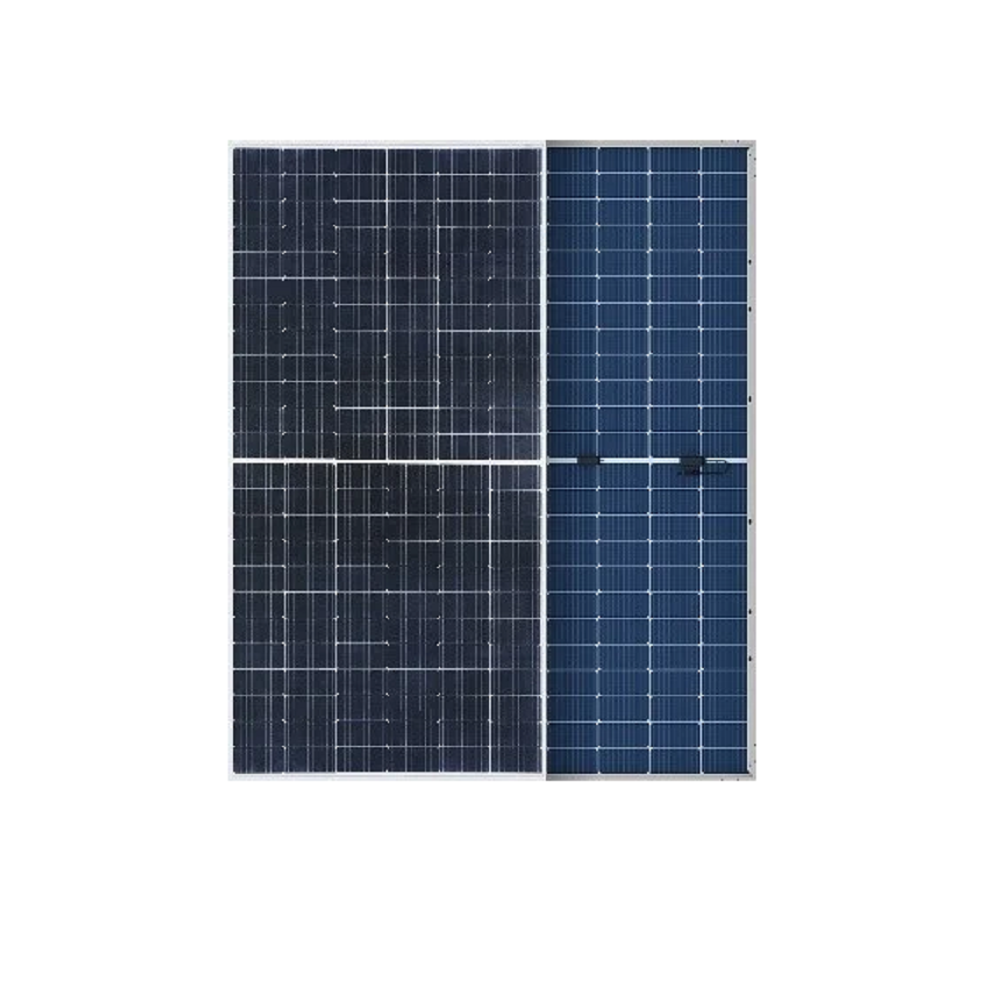

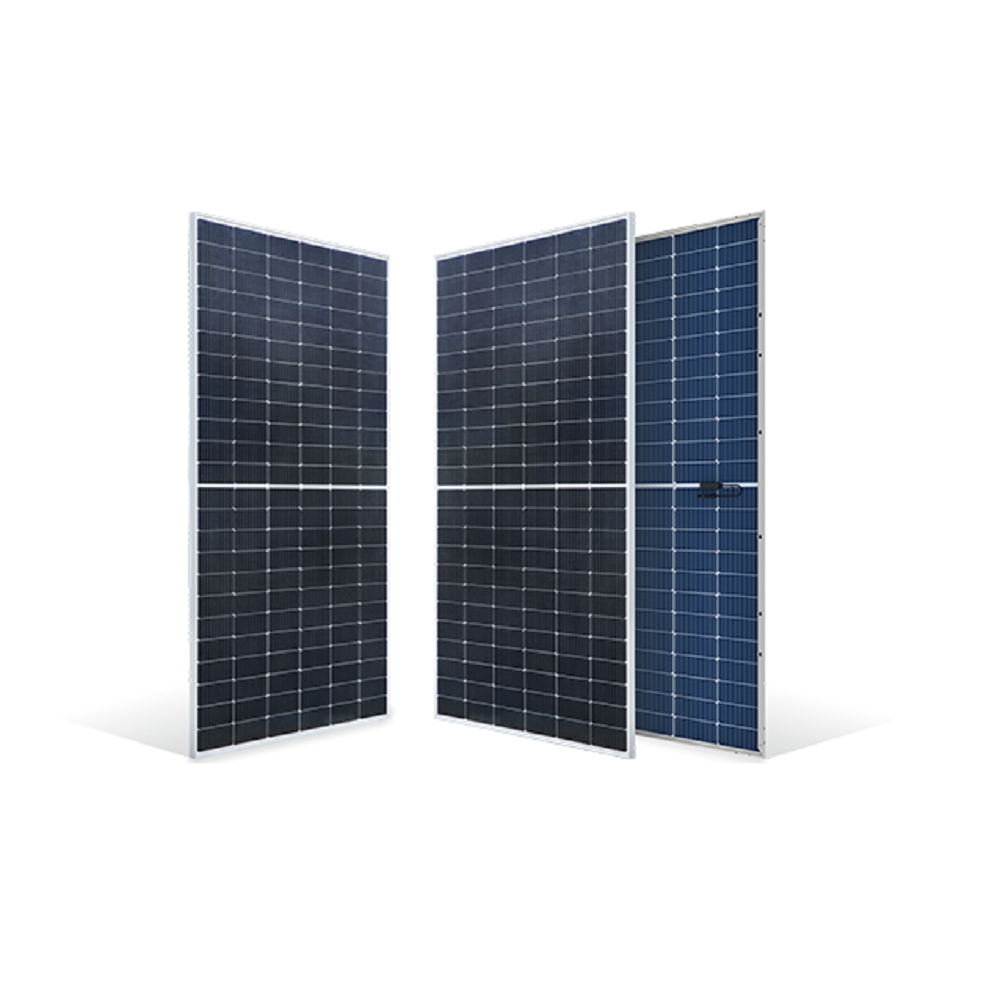

Insolation Energy 550-580W Platinum Series Bifacial TOPCon M10R Dual Glass 144 Half-Cells Efficiency 22.45%

The Insolation Energy Platinum Series features high-efficiency N-type TOPCon M10R glass-to-glass bifacial modules designed for superior performance and durability. Cell Technology: Powered by 144 half-cut N-type TOPCon M10R bifacial solar cells, providing higher conversion efficiency and enhanced energy density. Bifacial Generation: Features a high bifaciality factor of $80\%\pm10\%$, allowing the panel to harvest reflected light from the rear side for increased power yield. Dual Glass Construction: Built with 2.0 mm AR-coated heat-strengthened glass on the front and 2.0 mm heat-strengthened glass on the back for maximum protection. Advanced Encapsulation: Utilizes EPE/POE (Expanded polyethylene foam/Polyolefin Elastomer) to provide excellent resistance to PID and UV degradation. Optimal Thermal Control: Engineered with a low temperature coefficient of power ($-0.3023\%/^{\circ}C$), maintaining higher energy output in hot climates. Weatherproof Protection: Equipped with an IP68 rated 30A split junction box featuring three individual bypass diodes for reliable electrical performance. BenefitsMaximum Power Potential: Capable of achieving up to 725 Wp total output at 25% bifacial gain, depending on site conditions and albedo. Exceptional ROI: High module efficiency (up to 22.45%) and lower Balance of System (BOS) costs significantly reduce the Levelized Cost of Energy (LCOE). Enhanced Energy Yield: Supports vertical East-West mounting, providing two peak performance periods and better resistance to soiling. Long-Term Reliability: Backed by a 12-year product warranty and a 30-year linear performance warranty, ensuring power output remains at 87.40% at the end of the term. Extreme Weather Resilience: Certified to sustain heavy mechanical loads of 5400 Pa (snow) and 2400 Pa (wind), and passes hail tests with 25 mm diameter at 23 m/s. Hassle-Free Operation: High number of busbars and cylindrical tabbing wire reduce internal resistance, minimize shading, and inc
