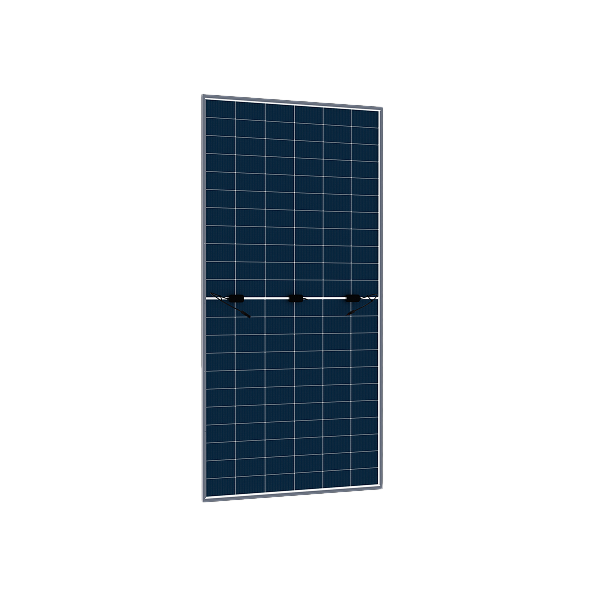

Tata Power Solar 540w (Glass-Glass) Mono PERC Bifacial 144 Half-Cells Efficiency 21.29% TP540HG10B

The TP540HG10B series is a high-efficiency mono PERC bifacial solar module designed for superior energy generation and long-term durability in utility and commercial installations. Cell Technology: Features 144 half-cut cells ([182 x 91] mm) utilizing mono PERC technology to improve light capture and current collection. Bifacial Advantage: Offers a bifaciality factor of [70 ± 10]%, allowing for increased energy harvest from reflected light on the rear side. Dual Glass Construction: Built with 2mm glass on each side (front and back) for enhanced structural integrity and environmental protection. Module Efficiency: Achieves a maximum module efficiency of up to 21.29% under standard testing conditions. Robust Framework: Constructed with a heavy-duty 6005-T6 grade anodized aluminium frame designed for industrial applications. Advanced Protection: Equipped with an IP68 rated junction box and MC4/MC4 compatible connectors for reliable field performance. Benefits Exceptional Power Output: Delivers a maximum peak power of 550Wp under standard test conditions and up to 589Wp at a 10% solar irradiance ratio. Long-Term Reliability: Features a low risk of failure with a warranty claim rate of under 0.07%. Industry-Leading Warranty: Backed by a 12-year product warranty on materials/workmanship and a 30-year linear power output warranty. Mechanical Strength: Certified to withstand extreme mechanical loads, including a 5400Pa snow load and 2400Pa wind load. PID Resistance: Specifically designed to be PID (Potential Induced Degradation) resistant to ensure consistent performance over time. Thermal Stability: Engineered to maintain stability in diverse climates with an operating temperature range of -40 to 85°C.
